Main Reason Why Measuring Tapes Have Black Diamonds and What They Are Used For
- Most people never notice the small black diamond on their tape measure, tucked between the 19 and 20-inch marks
- Far from being a printing quirk, it is a clever tool designed to divide an 8-foot sheet of plywood into five equal bays
- This hidden mark saves carpenters time, prevents errors, and ensures stronger, more accurate floor framing

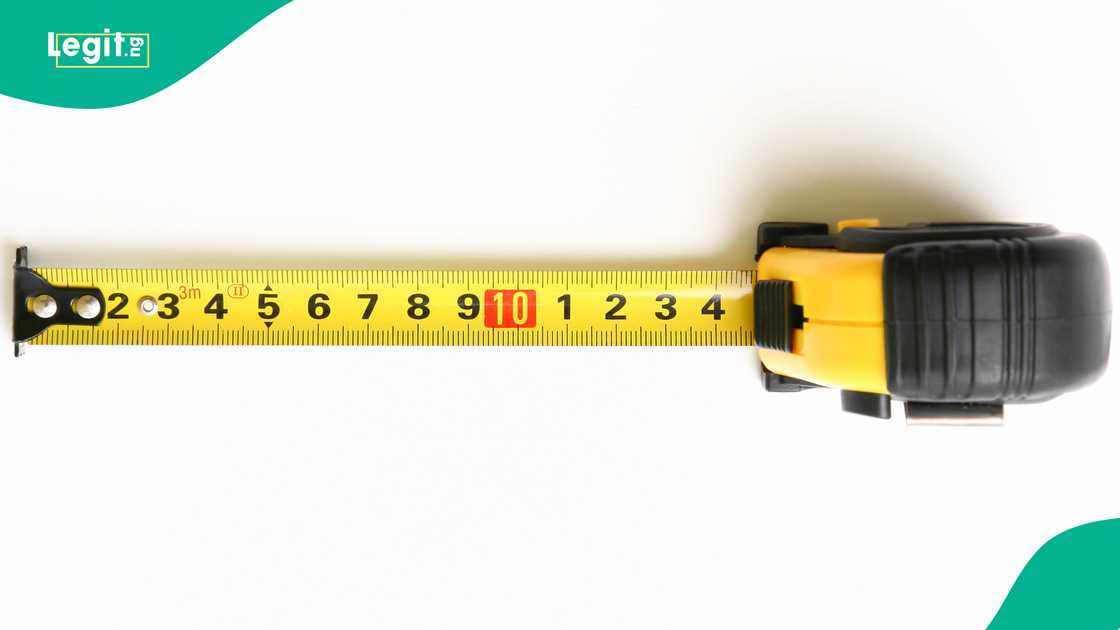

Most people have used a tape measure countless times without ever noticing the small black diamond that sits between the 19 and 20-inch marks.
It looks like a printing oddity, but it is actually a clever construction aid designed for a very specific purpose.
Source: Getty Images
Accoriding to India Defence, the black diamond is not decorative. It is a precision spacing tool built to divide an 8-foot sheet of plywood into five equal bays. According to Stanley Tools, the mark repeats every 19.2 inches so that framing carpenters can position floor joists quickly and accurately.
A standard sheet of structural panel measures 96 inches in length. Dividing that by five gives 19.2 inches. When joists are placed at this interval, every sheet edge lands squarely on solid framing. This ensures panels are fully supported, eliminating floating seams and reducing floor movement.
How framers use the diamond
Carpenters often start with a rim board or the first joist flush to the panel’s edge. From there, they hook the tape and drop each new joist directly at a diamond mark. The tape becomes a ready-made template, removing the need for mental calculations.
Over long runs, such as a 40-foot foundation, this method prevents small measurement errors from creeping in. Panels break cleanly on joists across the deck, cutting out unsupported edges. As West Fraser notes, the black diamond gives builders a visual cue to work faster without losing accuracy.
Difference between black diamond and red marks
Tape measures also feature red rectangles at 16-inch intervals. These marks are for wall studs, which building codes typically require at 16 inches on centre to match drywall and sheathing sizes.
The black diamond serves a different purpose: floor framing. At 19.2 inches, joists use less lumber while still meeting the 20-inch span rating stamped on most tongue-and-groove sub-floor panels. Both marks coexist, but they apply to different parts of construction.
Why most people don’t know
The diamond appears on tapes designed for imperial measurement, common in North America and parts of the UK. Manufacturers often ship the same design worldwide, so the mark shows up in metric countries without explanation.
For everyday household projects, like hanging shelves or spacing brackets, the diamond is irrelevant. It only becomes useful in large-scale framing jobs. This explains why many homeowners never learn its purpose.
Silent instructions built into tape measures
The black diamond is part of a family of hidden helpers on tape measures. Alongside red stud marks and the slightly loose hook (which compensates for metal thickness during inside and outside measurements), it turns repetitive calculations into quick visual cues.
For carpenters, the diamond saves time and ensures accuracy. Instead of dividing 96 inches by five, the tape has already done the maths. The result is faster layouts, fewer mistakes, and sturdier floors.
